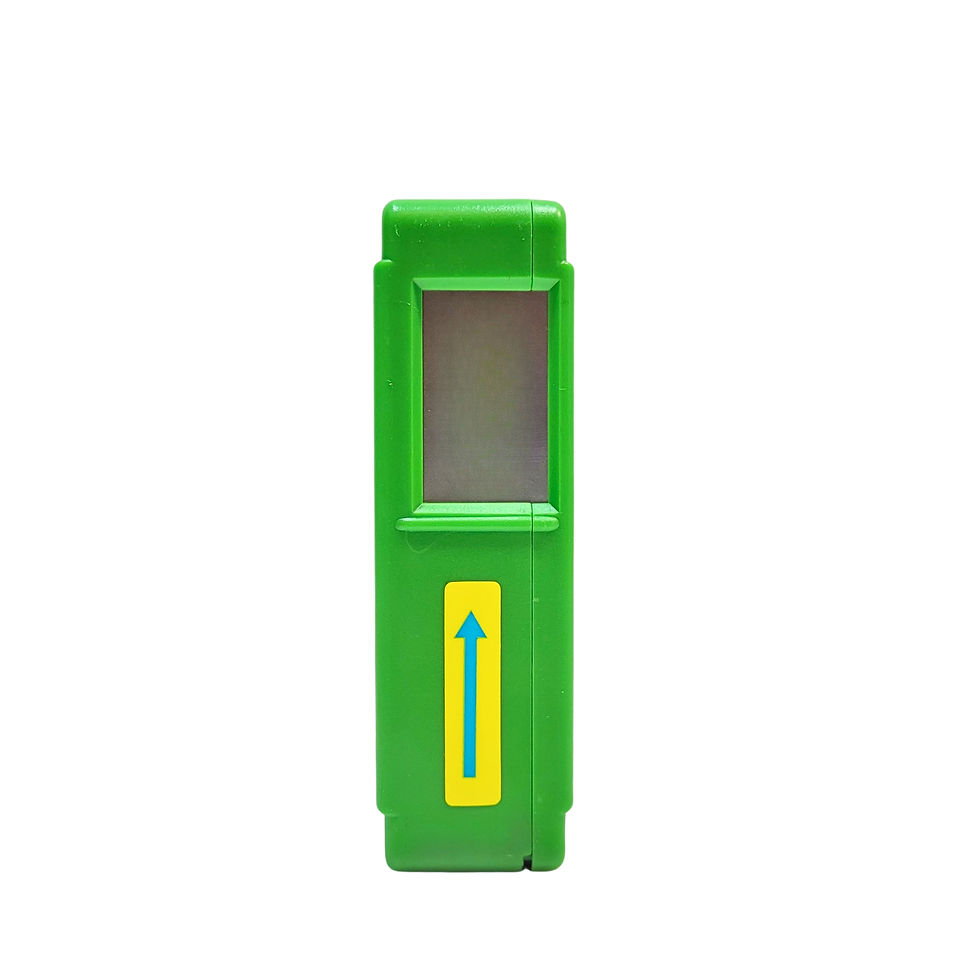

Fiber Optical Connector Cleaner for SC, FC, ST, LC, and MU Connectors

Fiber Optical Connector Cleaner for SC, FC, ST, LC, and MU Connectors

₹1,500.00Price
Sales Tax Included
Ensure optimal fibre-optic network performance by keeping connector end-faces clean and free of contaminants. The Fiber Optical Connector Cleaner is a practical solution designed for telecom, FTTH, data-centre and industrial fibre applications. When end-faces accumulate dust, oil or residue, signal loss or reflection can increase; this cleaner offers a quick, effective remedy.
With its universal support (both 1.25 mm & 2.5 mm) and multi-connector compatibility (SC, FC, ST, MU, LC), it simplifies tool inventory-no need for multiple models. The built-in cleaning tape supports over 500 wipes, reducing cost per cleaning cycle. The dry microfiber belt design ensures high-performance cleaning without messy solvents, and the compact cassette is field-ready and easy to store.
Quantity

  • Key Features:

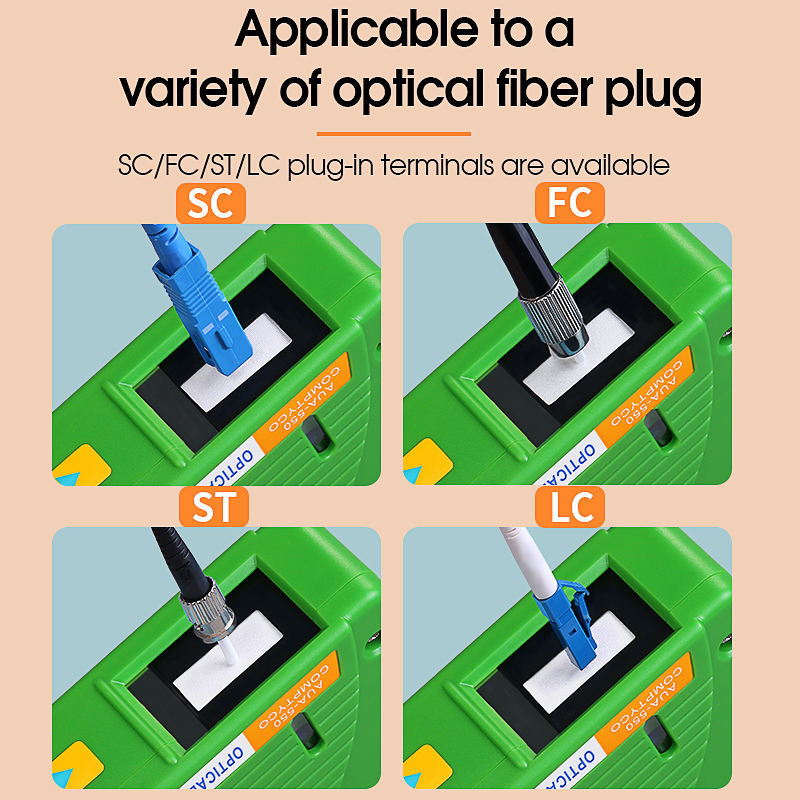

    • Universal compatibility: works with both 1.25 mm & 2.5 mm ferrules, and common connector types such as SC, FC, ST, MU and LC.

    • High cleaning capacity: built-in cleaning tape supports 500+ cleaning cycles per cassette, making it cost-efficient.

    • Dry, alcohol-free microfiber cleaning: uses a high-density anti-static textile belt to capture dust, oil and debris with minimal residue and no solvent required.

    • Compact & field-friendly: palm-sized cassette design for easy carry; ideal for on-site fiber maintenance, installations and data-center work.

    • Robust operating environment: suitable for a wide temperature range (Operating: ~-20 °C to +50 °C; Storage: ~-40 °C to +60 °C).

  • Technical Specifications:

    Specification

    Detail

    Connector Types Supported

    SC, FC, ST, MU, LC (Supports both 1.25 mm and 2.5 mm ferrules)

    Cleaning Cycles (Per Cassette)

    > 500 times

    Cleaning Material

    Alcohol-free special microfiber cloth

    Housing Material

    High-grade plastic

    Operating Temperature

    Approx. –20 °C to +50 °C

    Storage Temperature

    Approx. –40 °C to +60 °C



  • Applications:

    • Cleans fiber optic connectors (SC, FC, ST, LC, MU) to maintain signal quality

    • Used during telecom and FTTH (Fiber to the Home) installations

    • Essential for data centers and server rooms to prevent signal loss

    • Used before fiber splicing, testing (OTDR, power meter) and maintenance

    • Helps in troubleshooting and repairing fiber networks

    • Suitable for industrial, broadcast and high-speed communication networks

  • Usage Instruction:

    How to Use the Optical Connector Cleaner:

    1. Open the Shutter: Open the shutter by gripping the lever. New cleaning tape will automatically be exposed.

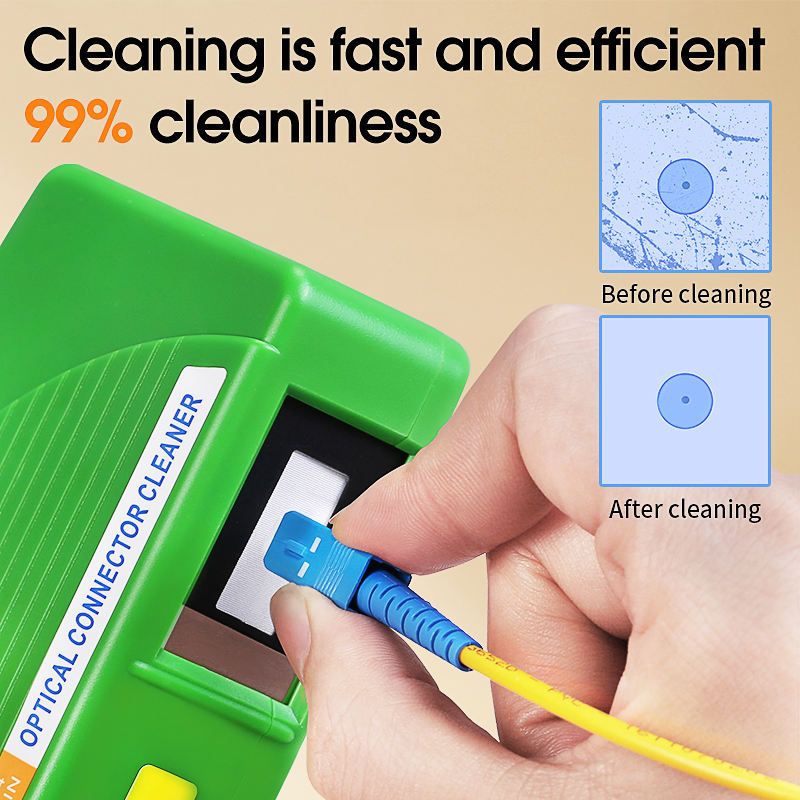

    2. Perform Cleaning: Push and slide a ferrule end face (the part you want to clean) while gripping the lever. The sliding action of the ferrule across the exposed tape performs the cleaning.

    Replacement Method (Changing the Tape/Reel):

    1. Open the Casing: Turn the screw to open the casing.

    2. Remove Used Reel: Take out the used cassette tape reel and feed reel.

    3. Install New Reels: Install the new coil and box reel into their designated places.

    4. Attach Casing: Put the shell back on the unit.

  • What's Included In The Box:

    • 1 x Fiber Optical Connector Cleaner

    • Instruction manual / usage guide
