FLUKE 107 Palm-sized CAT III Digital Multimeter

FLUKE 107 Palm-sized CAT III Digital Multimeter

SKU: FLUKE 107
₹7,650.00Price
The FLUKE 107 is built to keep up with professionals and serious hobbyists alike. With its compact size, it can easily slip into a shirt pocket or pouch, yet it can deliver the robust functionality and safety rating that you’d expect from a full-fledged digital multimeter.

Whether you’re troubleshooting wiring, checking electrical panels or conducting maintenance in factories or HVAC systems, or if you simply need a reliable multimeter for general electrical work - the Fluke 107 has you covered.
With its CAT III 600 V rating, you’re covered for many standard commercial/industrial measurement scenarios. The intuitive controls and clear display make it very user-friendly, and its rugged build ensures durability in real-world conditions.
Quantity

  • Key Features:

    • Essential Measurements: Features AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Diode, and Continuity testing.
    • Work Fast, Work Smart: Includes a backlit display for clear readings and a Data Hold function to freeze measurements on screen.

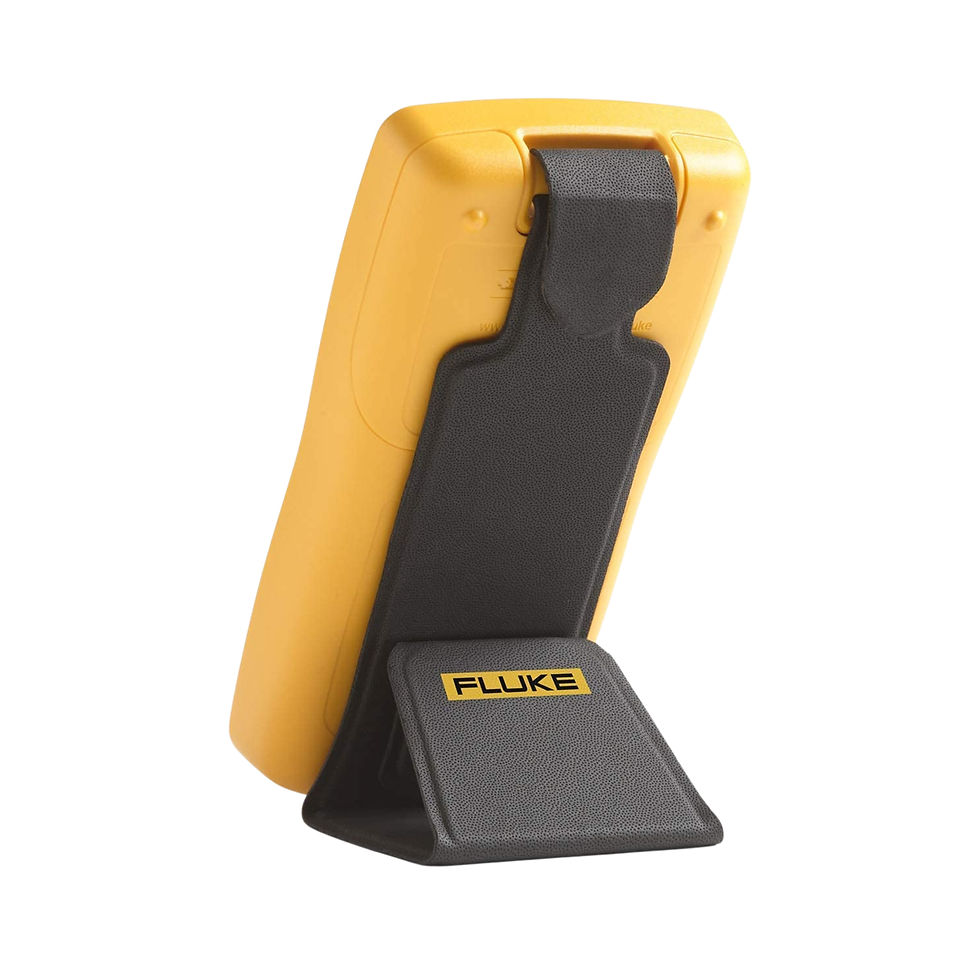

    • Hands-Free Operation: Comes equipped with the SmartStrap™ intelligent magnetic, multi-purpose lanyard for hanging or propping the meter on ferrous surfaces.
    • Professional Safety Rating: Rated for CAT III 600 V, ensuring safe operation in various electrical environments.
    • Portable & Lightweight: Designed to be small enough to fit in your shirt pocket, weighing only 200 g.
    • Rugged & Durable: Tough enough to withstand daily use.



  • Technical Specifications:

    Electrical Specification:

    Function

    Range

    Resolution

    Accuracy

    AC voltage
    (40 Hz to 500 Hz)

    6.000 V
    60.00 V
    600.0 V

    0.001 V
    0.01 V
    0.1 V

    1.0 % + 3

    DC voltage

    6.000 V
    60.00 V
    600.0 V

    0.001 V
    0.01 V
    0.1 V

    0.5 % + 3

    Exchange millivolts

    600.0 mV

    0.1 mV

    3.0 % + 3

    Diode test

    2.000 V

    0.001 V

    10 %

    Resistance
    (ohm)

    400.0 Ω
    4.000 kΩ
    40.00 kΩ
    400.0 kΩ
    4.000 MΩ
    40.00 MΩ

    0.1 Ω
    0.001 kΩ
    0.01 kΩ
    0.1 kΩ
    0.001 MΩ
    0.01 MΩ

    0.5 % + 3
    0.5 % + 2
    0.5 % + 2
    0.5 % + 2
    0.5 % + 2
    1.5% + 3

    Capacitor

    50.00 nF
    500.0 nF
    5.000 μF
    50.00 μF
    500.0 μF
    1000 μF

    0.01 nF
    0.1 nF
    0.001 μF
    0.01 μF
    0.1 μF
    1 μF

    2 % + 5
    2 % + 5
    5 % + 5
    5 % + 5
    5 % + 5
    5 % + 5

    Frequency Hz
    (10 Hz – 100 kHz)

    50.00 Hz
    500.0 Hz
    5.000 kHz
    50.00 kHz
    100.0 kHz

    0.01 Hz
    0.1 Hz
    0.001 kHz
    0.01 kHz
    0.1 kHz

    0.1 % + 3

    Duty cycle4

    1 % to 99 %

    0.10 %

    1 % typical case

    AC current
    (40 Hz - 200 Hz)

    4.000 A
    10.00 A

    0.001 A
    0.01 A

    1.5 % + 3

    DC Current

    4.000 A
    10.00 A

    0.001 A
    0.01 A

    1.5 % + 3



    Input Protection and Measurement Characteristics:

    Features Overload protection Input impedance (nominal value) Common mode rejection ratio Normal mode rejection ratio
    AC voltage 600 V  >10 MΩ <100 pF  >60 dB at 50 Hz or 60 Hz at DC current −
    Exchange millivolts 600 mV >1M, <100 pF >80 dB at 50 Hz or 60 Hz −
    DC voltage 600 V  >10 MΩ <100 pF >100 dB at 50 Hz or 60 Hz at DC current >60 dB at 50 Hz or 60 Hz



    Environmental Specification:

    Parameter

    Value

    Operating Temperature

    0 ° C to 40 °C

    Storage Temperature

    -30 °C to 60 °C

    Working Humidity

    No condensation below 10 °C


    ≤ 90% at 10 °C to 30 °C


    ≤ 75% at 30 °C to 40 °C

    Working Humidity (40 MΩ Range)

    ≤ 80% at 10 °C to 30 °C


    ≤ 70% at 30 °C to 40 °C

    Working Elevation (Altitude)

    2000 m

    Storage Altitude

    12,000 m

    Temperature Coefficient

    0.1 x (specified accuracy) / °C (<18 °C or >28 °C



    General Technical Indicators:

    Indicator

    Specification

    Highest Voltage Applied

    600 V (between any terminal and ground)

    Display (LCD)

    6000 Counts, updated three times per second

    Type of Battery

    Two AAA batteries (NEDA 24A,IEC LR03)

    Battery Life

    At least 200 hours

    Current Input Fuse Protection

    11 A, 1000 V fast-melting type (must use Fluke designated parts)

    Volume (H x W x L)

    142 mm x 69 mm x 28 mm

    Weight

    200 g

    Protection Level

    IEC 60529: IP 40

    Safety

    IEC 61010-1: 600 V CAT III, pollution degree 2

    Electromagnetic Environment

    IEC 61326-1: Portable

    Electromagnetic Compatibility

    This product meets the requirements of industrial (Class A) electromagnetic wave equipment.







  • Applications:

    The Fluke 107 is a compact, palm-sized digital multimeter designed for a range of basic electrical measurement tasks. Its main applications include:

    • Measuring AC and DC voltage (up to 600 V)

    • Measuring AC and DC current (up to 10 A)

    • Testing resistance and continuity (for checking broken wires)

    • Measuring capacitance

    • Diode testing

    • Frequency and duty-cycle measurement

    • General troubleshooting and maintenance in electrical and electronic systems

  • What's Included In The Box:

    • Fluke 107 palm-sized digital multimeter
    • (1 pair) TL75 Hard Point™ Test Leads
    • (2) AAA batteries (installed)
    • SmartStrap™ intelligent magnetic, multi-purpose lanyard

  • Warranty & Safety:

    1 Years Manufacturers Warranty
