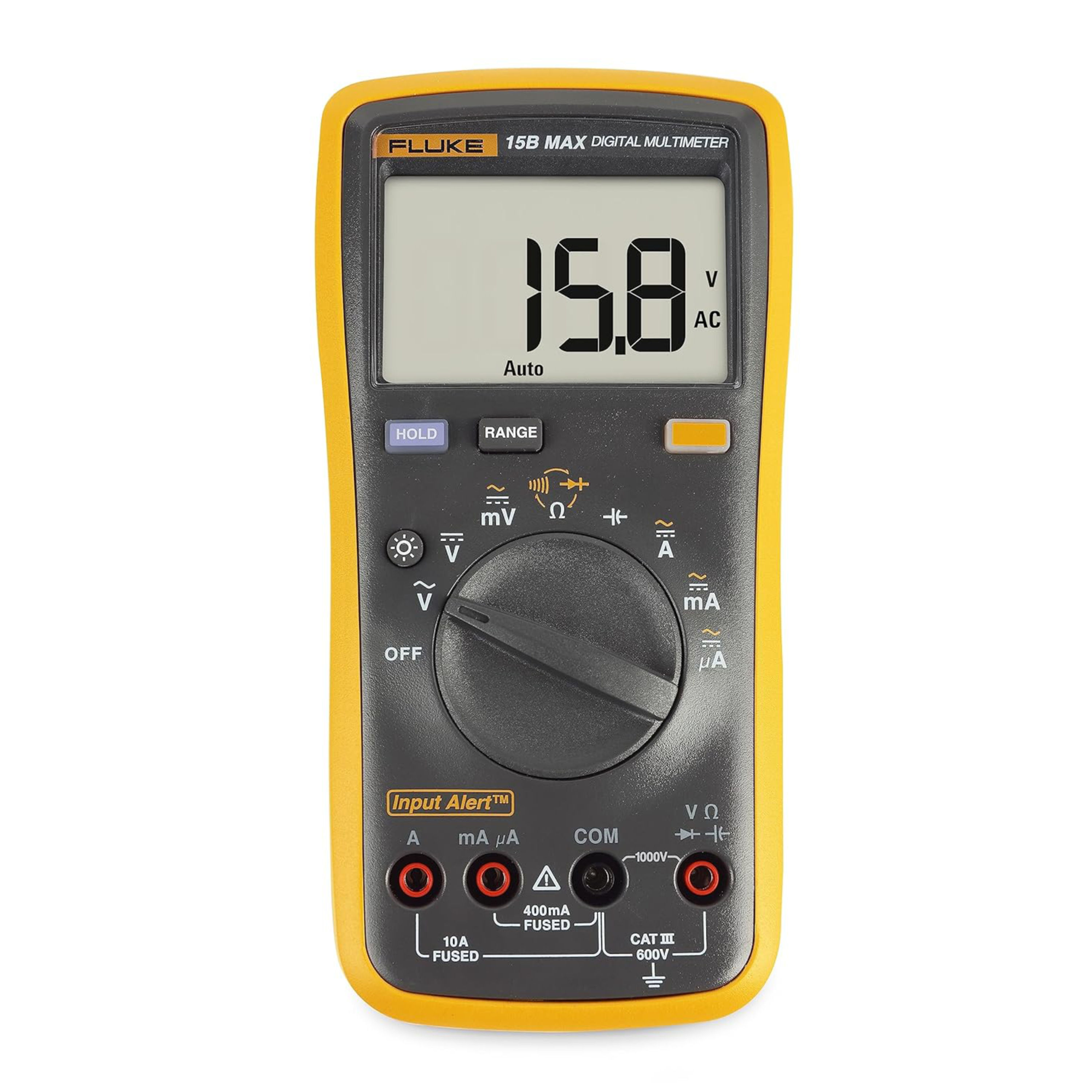

FLUKE 15B MAX-02 CAT III Digital Multimeter with TL31 Test Lead

FLUKE 15B MAX-02 CAT III Digital Multimeter with TL31 Test Lead

SKU: FLUKE 15B MAX-02
₹10,600.00Price
The FLUKE 15B MAX Digital Multimeter is the economical and reliable tool you need for essential electrical troubleshooting and maintenance. Designed for electricians, HVAC professionals, and electronic R&D personnel, the 15B MAX is the successor to the classic 15B+, now featuring the critical Input Alert Alarm to protect you and your meter from incorrect test lead connections.
With a large, easy-to-read 6000-count display and a robust, ergonomic design, this meter is built to withstand the tough demands of the field while providing accurate measurements for voltage, current, resistance, capacitance, and more.
Quantity

  • Key Features:

    • Input Alert Alarm: Features both an audible and visual alarm to instantly warn against incorrect test lead connections, significantly enhancing safety and preventing costly meter damage.

    • High Safety Rating: Rated CAT III 600V for superior protection in commercial and light industrial environments.

    • 6000-Count Backlit Display: Provides high-resolution measurements for precise readings.

    • Extended Capacitance Range: Capable of measuring up to 2000uF.

    • Fine-Tip Test Leads: Includes high-quality TL31 test leads with fine tips, ideal for making accurate measurements on circuit boards and smaller components.

    • Auto-Wake Function: The meter can be easily woken up from sleep mode by activating any button, ensuring immediate readiness for testing.

    • Measurement Functions: AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode Test, and Continuity.

  • Technical Specifications:

    Electrical Specification:

    Function Range Resolution Accuracy
    AC Volts (40 Hz to 500 Hz) 6.000 V
    60.00 V
    600.0 V
    1000 V    		 0.001 V
    0.01 V
    0.1 V
    1 V    		 1.0 % + 3
    AC Millivolts 600.0 mV 0.1 mV 3.0 % + 3
    DC Volts 6.000 V
    60.00 V
    600.0 V
    1000 V    		 0.001 V
    0.01 V
    0.1 V
    1 V    		 0.5 % + 3
    DC Millivolts 600.0 mV 0.1 mV 1.0 % + 10
    AC Current μA (40 Hz to 400 Hz) 400.0 μA
    4000 μA    		 0.1 μA
    1 μA    		 1.5 % + 3
    AC Current mA (40 Hz to 400 Hz) 40.00 mA
    400.0 mA    		 0.01 mA
    0.1 mA    		 1.5 % + 3
    AC Current A (40 Hz to 400 Hz) 4.000 A
    10.00 A    		 0.001 A
    0.01 A    		 1.5 % + 3
    DC Current μA 400.0 μA
    4000 μA    		 0.1 μA
    1 μA    		 1.5 % + 3
    DC Current mA 40.00 mA
    400.0 mA    		 0.01 mA
    0.1 mA    		 1.5 % + 3
    DC Current A 4.000 A
    10.00 A    		 0.001 A
    0.01 A    		 1.5 % + 3
    Diode Test 2.000 V 0.001 V 10%
    Resistance (Ohms) 400.0 Ω
    4.000 kΩ
    40.00 kΩ
    400.0 kΩ
    4.000 MΩ
    40.00 MΩ    		 0.1 Ω
    0.001 kΩ
    0.01 kΩ
    0.1 kΩ
    0.001 MΩ
    0.01 MΩ    		 0.5 % + 3
    0.5 % + 2
    0.5 % + 2
    0.5 % + 2
    0.5 % + 2
    1.5 % + 3
    Capacitance 40.00 nF
    400.0 nF
    4.000 μF
    40.00 μF
    400.0 μF
    2000 μF    		 0.01 nF
    0.1 nF
    0.001 μF
    0.01 μF
    0.1 μF
    1 μF    		 2 % + 5
    2 % + 5
    5 % + 5
    5 % + 5
    5 % + 5
    5 % + 5
    Continuity Threshold - - 70Ω
    Backlight - - Yes



    Input Protection and Measurement Characteristics:

    Function Overload Protection Input Impedance (Nominal) Common Mode Rejection Ratio Normal Mode Rejection Ratio
    AC Volts 1000 V  >10 MΩ, <100 pF >60 dB at 50 Hz or 60 Hz -
    AC Millivolts 1000 V  >1 MΩ, <100 pF >80 dB at 50 Hz or 60 Hz -
    DC Volts 1000 V  >10 MΩ, <100 pF >100 dB at 50 Hz or 60 Hz >60 dB at 50 Hz or 60 Hz
    DC Millivolts 1000 V  >1 MΩ, <100 pF >80 dB at 50 Hz or 60 Hz -



    Environmental Specifications:

    Parameter Specification
    Operating temperature 0 °C to 40 °C
    Storage temperature -30 °C to 60 °C
    Operating humidity Non-condensing (<10 °C); ≤90% RH (10–30 °C); ≤75% RH (30–40 °C)
    Operating humidity (40 MΩ range) ≤80% RH (10–30 °C); ≤70% RH (30–40 °C)
    Operating altitude 2000 m
    Storage altitude 12,000 m



    General Technical Indicators:

    Parameter Specification
    Maximum voltage between any terminal and earth ground 600 V
    Maximum differential voltage (V–COM) 1000 V
    Display 6000-count LCD, updates 3/sec
    Battery type 2 × AA (IEC LR6)
    Battery life 500 hours minimum
    Temperature coefficient 0.1 × (specified accuracy) / °C (<18 °C or >28 °C)
    Fuse protection (current inputs) 440 mA, 1000 V fast-blow (Fluke specified)
    Fuse protection (current inputs) 11 A, 1000 V fast-blow (Fluke specified)
    Size (H × W × L) 183 × 91 × 49.5 mm
    Weight 455 g
    Ingress protection IP40
    Safety rating IEC 61010-1, IEC 61010-2-030; CAT III 600 V, Pollution Degree 2
    Electromagnetic environment IEC 61326-1: Portable



  • Applications:

    • AC/DC voltage checks - Measuring mains and control voltages in residential, commercial, and light industrial circuits up to CAT III 600 V.​

    • Continuity and resistance - Checking cables, switches, fuses, coils, and general wiring integrity during troubleshooting.​

    • Capacitance testing - Verifying motor start/run capacitors and power supply filter capacitors up to about 2000 µF.​

    • Diode/component checks - Using fine-tip probes for PCB-level testing in electronics repair, R&D, and prototyping.​

    • Appliance/HVAC troubleshooting - Verifying supply, control, and sensor voltages in small machinery, HVAC controls, and household appliances.​

    • Training and lab use - Serving as an economical, robust handheld DMM for basic electrical/electronics education and technician training.

  • What's Included In The Box

    • 1 x Fluke 15B MAX Digital Multimeter

    • 1 x Set of TL31 Test Leads with 2 Protective Caps

    • 2 x AA Batteries

    • 1 x User Manual

  • Warranty & Safety:

    1 Years Manufacturers Warranty
