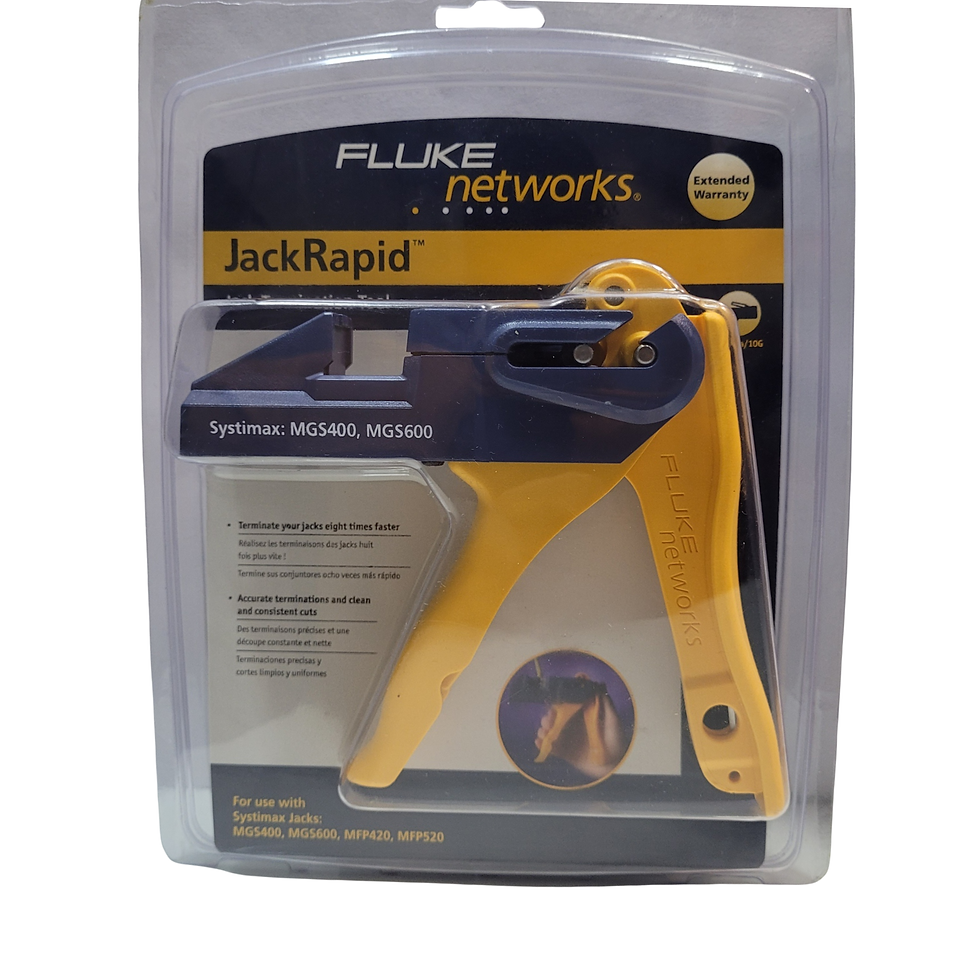

FLUKE NETWORKS JackRapid | Jack Termination Tool(JR-SYS-2)
The Fluke Networks JR-SYS-2 JackRapid is a patented, professional-grade jack termination tool engineered to revolutionize network installation efficiency. This innovative punchdown tool seats and terminates all eight wires simultaneously with a single squeeze of the ergonomic handle, allowing installers to terminate jacks eight times faster than traditional impact tools while maintaining unmatched accuracy. The built-in blade automatically cuts off excess wire after seating it in the connector, eliminating the need for a secondary trim step and reducing installation time by up to 1 minute per jack.
Specifically designed for SYSTIMAX MGS400, MGS600, MFP420, and MFP520 Cat 6 jacks, this lightweight, battery-free tool features simple one-handed operation that reduces hand fatigue during extended installation projects. The unique design easily accommodates close-to-wall installations, and with JackRapid, installers will never punch into their palm or through drywall again.
Key Features:
-
8x Faster Termination: Completes jack terminations in a fraction of the time compared to traditional impact tools
-
Simultaneous Wire Seating: Patented technology seats and terminates all 8 wires at once with one handle squeeze
-
Integrated Cutting Blade: Built-in blade cuts excess wire automatically, eliminating secondary trim steps
-
One-Handed Operation: Ergonomically designed handle reduces hand fatigue and improves installer comfort
-
Consistent Quality: Delivers high-quality, consistent terminations with no compromised connections or wasted jacks
-
Replaceable Blade Head: Future-proof design with replaceable blade head (Model: JR-SYS-2-H)[JR-SYS-2-H is the model for the replacement blade which needs to be purchased separately] for extended tool life
-
Battery-Free: Professional-grade mechanical tool requires no batteries or power source
-
Wall-friendly: Unique design easily accommodates close-to-wall installations
-
Technical Specifications:
Specification
Details
Model Number
JR-SYS-2
Manufacturer
Fluke Networks
Item Number
3093700
Tool Type
JackRapid Punchdown Termination Tool
Compatible Jack Models
SYSTIMAX MGS400, MGS500, MFP420, MFP520
Jack Category
Cat 6
Operation
One-handed, manual squeeze handle
Blade Type
Integrated cutting blade
Blade Head
Replaceable (JR-SYS-2-H)
Power Source
Manual (Battery-free)
Grade
Professional/General Purpose Duty
Primary Color
Yellow
Compatible SYSTIMAX Jack Models:
- SYSTIMAX MGS400 (Cat 6)
- SYSTIMAX MGS600 (Cat 6)
- SYSTIMAX MFP420
- SYSTIMAX MFP520
How to Use:
- Strip cable jacket with a standard cable stripper or the built-in cable stripper.
- Determine wiring scheme. Dress all 4 pairs (8 wires).
- Insert jack in JackRapid front first with IDC slots facing blades of JackRapid.
- Ensure jack is completely and securely inserted in jack holder bed with IDC slots facing the blades.
- Pull trigger completely and remove excess wire prior to releasing trigger.
- Wires will be seated and cut for a solid termination.
- Release handle and remove jack from JackRapid tool. Visually verify proper termination.
Warranty & Safety:
1 Year Manufacturer's Warranty
