INGCO 3 Piece Electrical Test Kit-DM3068

Complete Testing Solution: All three essential electrical testing tools in one convenient kit for comprehensive diagnostics and troubleshooting.

True RMS Technology: Both multimeter and clamp meter feature True RMS measurement for accurate readings of non-linear loads and distorted waveforms.

Non-Contact Voltage Detection: Quick and safe power checks without physical contact - ideal for preliminary safety checks before starting work.

High Current Capability: Clamp meter measures up to 400A AC current, suitable for industrial equipment and heavy-duty applications.

Wide Measurement Ranges: Comprehensive voltage, current, resistance, and capacitance ranges cover virtually all electrical testing scenarios.

LCD Display with Backlight: Clear, easy-to-read displays on both multimeter and clamp meter with backlight for low-light working conditions.

Data Hold Function: Freeze readings on display for recording measurements in difficult-to-access locations.

Ergonomic Design: Comfortable housing with protective holster on multimeter for durability and ease of handling.

Safety Features: Low battery indicators, auto power-off function, and input jack LED indicators ensure safe operation.

Ready to Use: Comes complete with batteries and test leads - no additional purchases required

Specification	Details
Model Number	DM3068
Brand	INGCO
Product Type	3-Piece Electrical Testing Kit
Kit Weight	Approximately 600g
Power Source	Battery Powered (6 x AAA)
Packaging	Double Blister Pack
Certification	Professional Grade

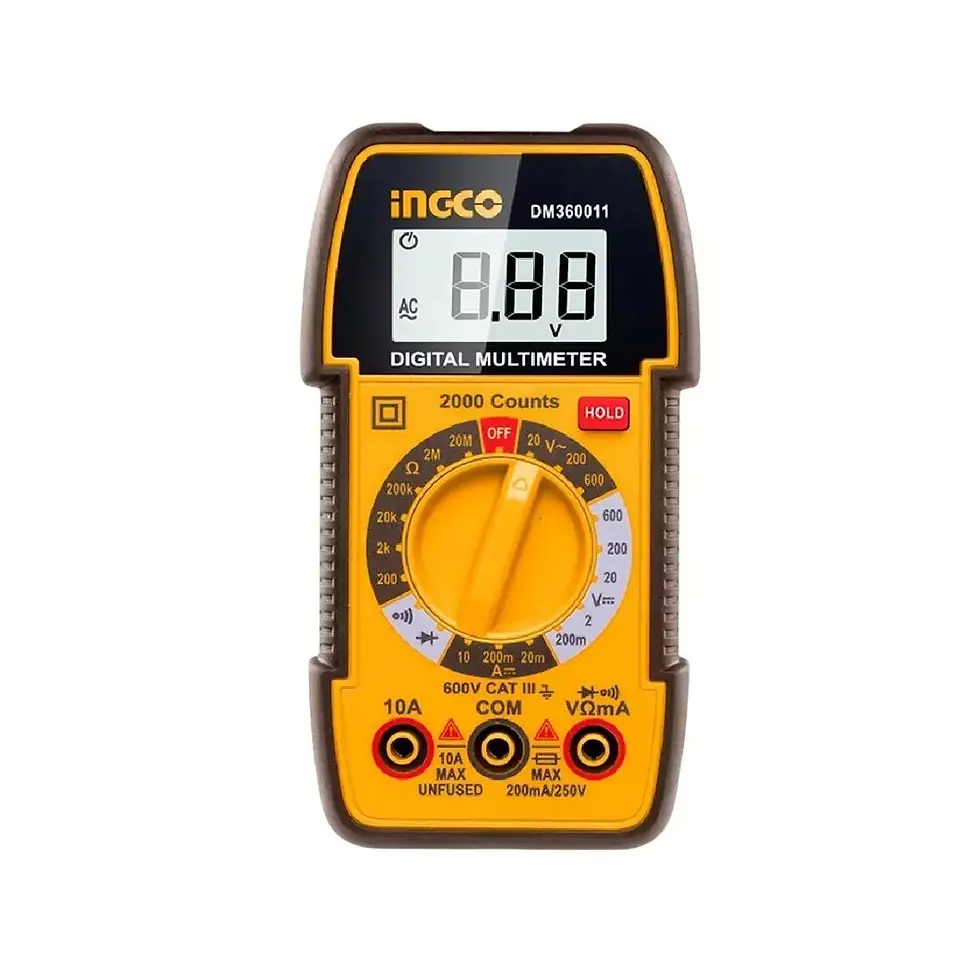

Digital Multimeter (DM360011) Specifications:



Specification	Details
Display Type	True RMS 2000 Counts LCD
DC Voltage Range	200mV / 2V / 20V / 200V / 600V
AC Voltage Range	20V / 200V / 600V
DC Current Range	20mA / 200mA / 10A
Resistance Range	200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ
Special Features	Non-contact voltage detection, Live/Neutral line distinction, Diode test
Display Functions	Max/Min, Data Hold, Backlight
Additional Features	Flashlight function, Low battery indication, Input jack LED indicator

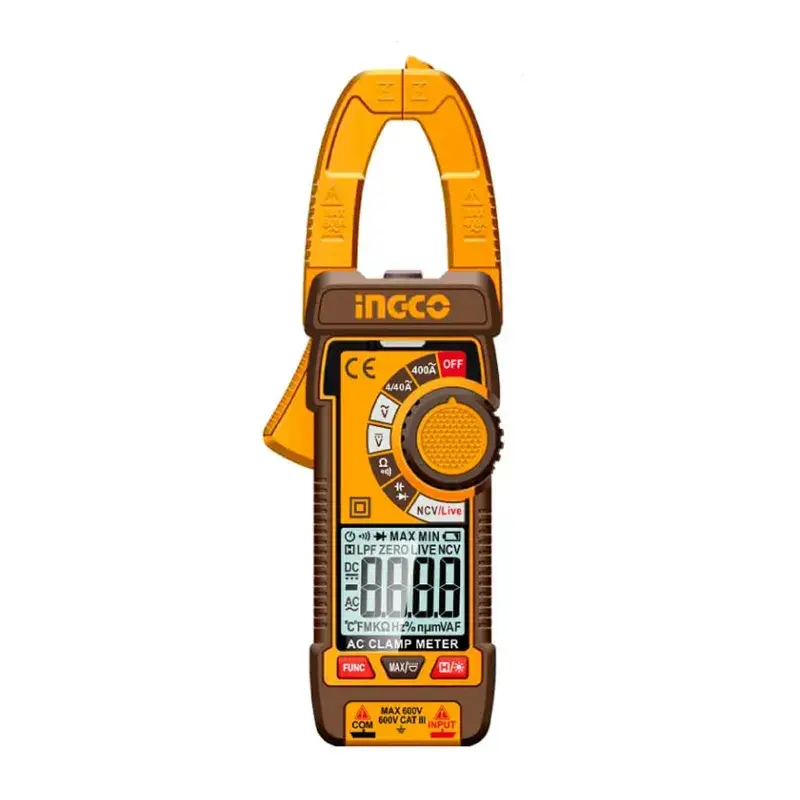

Digital AC Clamp Meter (DCM62001) Specifications:



Specification	Details
Display Type	True RMS 4000 Counts LCD
AC Current Range	4A / 40A / 400A
DC Voltage Range	400mV / 4V / 40V / 600V
AC Voltage Range	400mV / 4V / 40V / 600V
Resistance Range	400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ
Capacitance Range	4nF / 40nF / 400nF / 4μF / 40μF / 400μF / 4mF
Maximum Current	400A AC
Special Functions	Data Hold, NCV (Non-Contact Voltage), Diode test
Safety Features	Low battery indication, Auto power off



AC Voltage Detector (VD100091) Specifications:



Specification	Details
Voltage Detection Range (High Sensitivity)	12V ~ 1000V AC
Voltage Detection Range (Low Sensitivity)	48V ~ 1000V AC
Frequency Range	50Hz / 60Hz
Detection Type	Non-contact (NCV)
Alarm Mode	Sound and Light Alarm (dual indication)
Flashlight	White LED integrated
Safety Rating	For voltage detection up to 1000V







Residential Electrical Work:

• Home wiring troubleshooting and installation

• Circuit breaker testing and load verification

• Outlet and switch testing

• Appliance current draw measurement

Commercial & Industrial Maintenance:

• HVAC system diagnostics

• Motor current measurement and testing

• Panel and distribution box testing

• Equipment maintenance and troubleshooting

Electrical Installation:

• New installation verification

• Safety compliance testing

• Power quality assessment

• Circuit continuity testing

Automotive & Electronics:

• Automotive electrical system diagnostics

• Battery and charging system testing

• Electronic circuit troubleshooting

• Component testing

• 1 x Digital AC Clamp Meter (DCM62001)

• 1 x Digital Multimeter (DM360011)

• 1 x AC Non Contact Voltage Detector (VD100091)

• 1 x Test Lead Set with probes

• 6 x R03 AAA Alkaline Batteries (INGCO brand)

• Packed in Double Blister for protection and display
