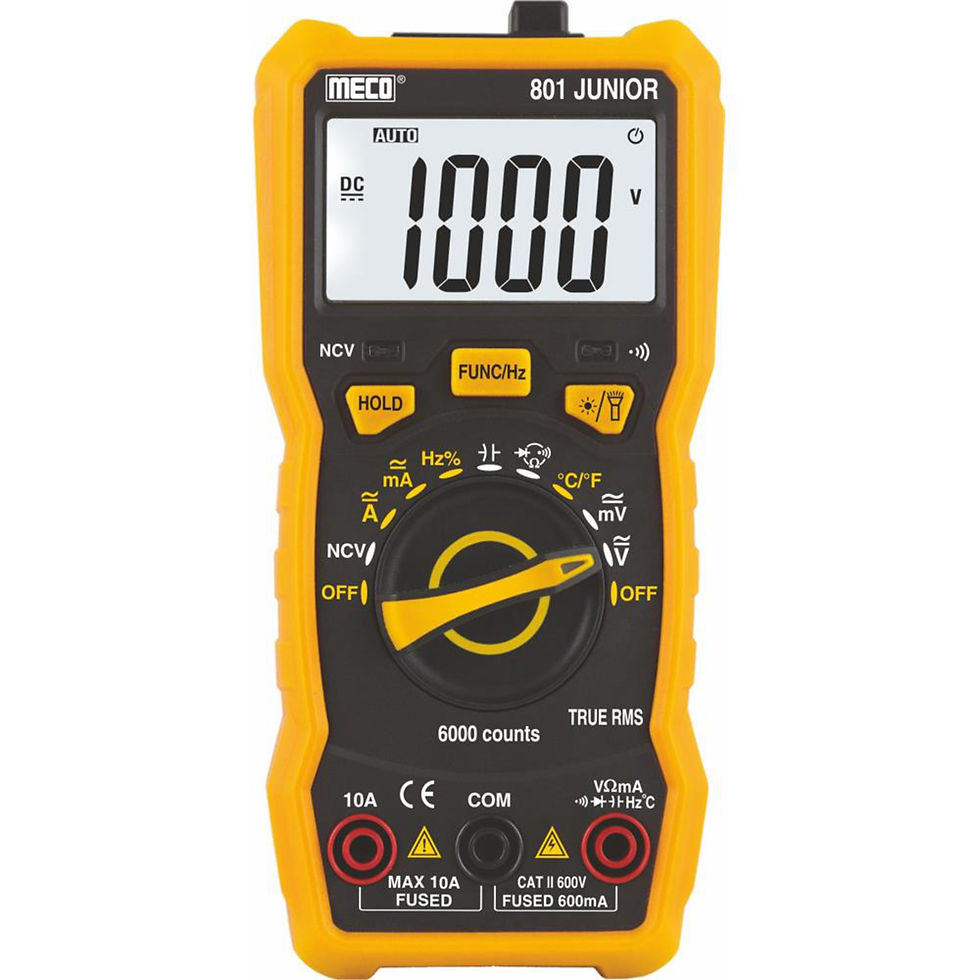

MECO 801 JUNIOR Digital Multimeter
The MECO 801 JUNIOR is a robust, professional-grade True RMS Digital Multimeter designed for electricians, HVAC technicians, and field service engineers. Packed into a compact, splash-proof housing, it offers the functionality usually found in much more expensive instruments.
This 6000-count auto-ranging meter handles a wide range of electrical measurements with high accuracy. It can measure AC/DC Voltage up to 1000V DC/750V AC, and AC/DC Current up to 10A. Beyond basic electrical parameters, the 801 JUNIOR is equipped to measure Resistance up to 60MΩ, Capacitance up to a massive 100.0mF, and Frequency up to 10.00MHz, making it highly versatile for electronics troubleshooting.
Safety and convenience are paramount in the 801 JUNIOR's design. It features integrated Non-Contact Voltage (NCV) detection with audible and visual alerts to quickly identify live wires without direct contact. For working in dark or difficult locations, the bright backlit LCD and built-in torchlight are essential tools. Furthermore, the protective holster includes a powerful magnet, allowing you to mount the meter on electrical panels for easy, hands-free viewing while you work.
Key Features:
-
True RMS (TRMS): Delivers precise readings even when measuring non-linear AC waveforms.
-
High-Resolution Display: 6000-count LCD with bright backlighting ensures clear visibility in low-light conditions.
-
Comprehensive Measurement Capabilities: Auto-ranging support for AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, and temperature.
-
Safety First: Built-in Non-Contact Voltage (NCV) detector with visual and audible alerts.
-
Built for the Job Site: Equipped with a built-in torchlight for dark workspaces and a magnetic holster for convenient hands-free use.
-
Enhanced Data Functions: Features Data Hold, for efficient data tracking.
-
Energy-Saving Functions: Auto Power Off (APO) function helps extend battery life.
-
Technical Specifications:
Electrical Specification:
Function
Range
Resolution
Accuracy
DC Voltage (Auto Ranging)
60mV
600mV
6V
60V
600V
1000V
0.01mV to 1V
± (0.8% + 5)
AC Voltage TRMS (Auto Ranging)
60mV
600mV
6V
60V
600V
750V
0.01mV to
1V
± (1.0% + 10)
± (1.0% + 10)
± (1.0% + 4)
± (1.0% + 4)
± (1.0% + 4)
± (1.0% + 4)
DC Current (Auto Ranging)
60mA
600mA
6A
10A
0.01mA to 0.01A
± (1.2% + 4)
± (1.2% + 4)
± (3.0% + 2)
± (5.0% + 10)
AC Current TRMS (Auto Ranging)
60mA
600mA
6A
10A
0.01mA to 0.01A
± (1.5% + 3)
± (1.5% + 3)
± (3.0% + 5)
± (5.0% + 10)
Resistance (Auto Ranging)
600Ω
6kΩ
60kΩ
600kΩ
6MΩ
60MΩ
0.1Ω to 0.01MΩ
± (0.8% + 5)
Capacitance
60.00nF
600.0nF
6.000μF
60.00μF
600.0μF
6.000mF
60.00mF
100.0mF
10pF to 100μF
± (3.0% + 5)
± (5.0% + 20)
± (3.0% + 5)
± (3.0% + 5)
± (3.0% + 5)
± (3.0% + 5)
± (5.0% + 5)
± (5.0% + 5)
Frequency
60.00Hz ~ 10.00MHz
0.01Hz ~ 0.01MHz
± (1.5% + 5)
Duty Cycle
1% ~ 99%
0.1%
± (1.5% + 5)
Temperature
-20°C ~ 1000°C
1°C
± (1.0% + 3)
General Specification:
Specification
Detail
Brand
MECO
Model
801 JUNIOR
Display
3-5/6 Digits, 6000 Counts LCD with Backlight
Sampling Rate
Approx. 3 times per second
Ranging
Auto Ranging/ Manual Using the FUNC Button
Special Functions
NCV (with LED, Buzzer & EF Strength), Torchlight, Data Hold.
Safety Rating
CAT II 600V
Power Supply
3 x 1.5V AAA Batteries
Auto Power Off
Yes (after approx. 15 minutes of inactivity)
Low Battery Indication
Yes (Symbol appears on display)
Operating Environment
0°C to 50°C, <80% RH
Storage Environment
-20°C to 60°C, <80% RH (batteries removed)
Dimensions
Approx. 147mm (L) x 71mm (W) x 45mm (H)
Weight
Approx. 230g (including batteries and holster)
What's Included In The Box:
-
1 x MECO 801 JUNIOR Digital Multimeter
-
1 x Set of Test Leads
-
1 x Temperature Probe (K-Type Thermocouple)
-
3 x 1.5V AAA Batteries
-
2 x Spare Fuse (0.6A/250V)
-
Instruction Manual
-
