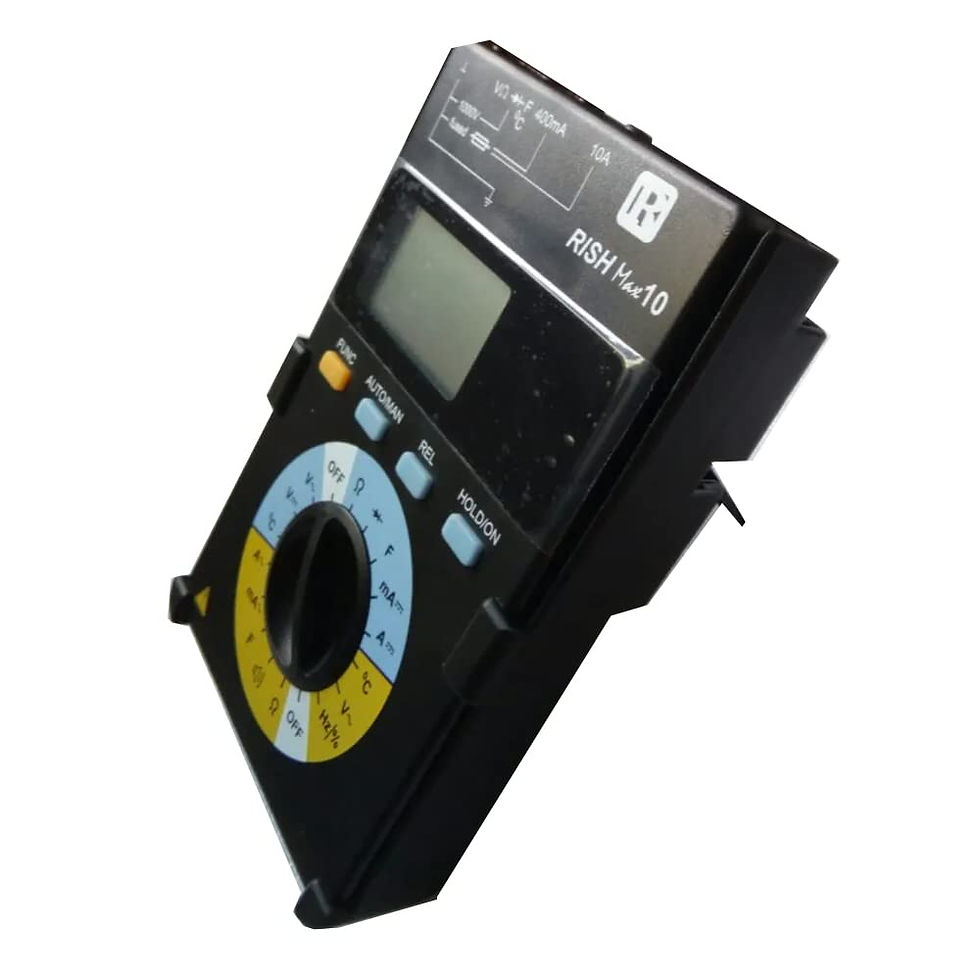

Rish Max 10 Digital Multimeter

Rish Max 10 Digital Multimeter

SKU: RISH MAX 10
₹2,350.00Price
Sales Tax Included
The Rish Max 10 is a high-performance digital multimeter designed for a wide range of electrical measurements with superior accuracy and reliability. Featuring 3¾ digit 3999 counts display, the multimeter supports measurements of AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, continuity, and diode testing. With built-in advanced functions like relative measurement, auto/manual range selection, and overload warning, this instrument is ideal for both professional technicians and DIY enthusiasts.
Quantity

  • Key Features:

    High-Resolution Display: Features a clear, 3¾ digit (3999 count) LCD display for precise readings.

    Auto-Ranging: Quickly and automatically selects the correct measuring range for most functions
    Note: For Temperature (°C), Frequency (Hz), Duty cycle (%) and Capacitance (F) measuring range is AUTO. No Manual range selection is possible.

    Wide Functionality: Measures AC/DC voltage (100 µV to 1000 V), AC/DC current (10 µA to 10 A), resistance (100 mΩ to 40 MΩ), capacitance (1 pF to 200 µF), frequency (10 Hz to 500 kHz), and temperature (0 °C to 1300 °C with K-type thermocouple-sold separately)

    Relative Measurement (REL): Allows for zero correction and measurement of relative values, useful for nulling out lead resistance or baseline drift.

    Enhanced Protection: Comes with a protective ABS cover that acts as a tilt stand and allows for secure storage of the test leads. IP50 protection rating for the instrument body.

    Safety & Durability: Features overload warning for high currents/voltages and an Energy Saving Circuit (Auto OFF after 15 minutes).

    Additional Benefits:

    • Hold function to freeze the display reading

    • Diode test and continuity buzzer for circuit checks (<100 Ω)

    • Overload warning buzzer for AC voltage >750 V, DC voltage >1000 V, current >10 A

    • Low battery indicator with automatic shutdown after inactivity for energy saving

    • Theft protection with user identification etching on the device

  • Additional Information:

    • Power Supply: 2 × 1.5 V AAA Mignon Cells (IEC R6 / LR6)

    • Battery Life: Approx. 300 hours (Zinc-Carbon) / 600 hours (Alkaline)

    • Fuses:

      • mA Range: 1.6 A / 1000 V

      • 10 A Range: 16 A / 600 V

    • Dimensions (W × H × D): 92 mm × 154 mm × 25 mm (Exceptionally flat design)

    • Weight: Approx. 0.25 kg (with battery)

    • Other Functions:

      • Diode Test

      • Continuity Test (with buzzer < 100 Ω)

  • Technical Specifications:

    Measurement Type Range Resolution Accuracy (± % reading + digits)
    DC Voltage (V DC) 400 mV to 1000 V 1 mV to 1 V 0.75% + 2 digits (low ranges) 1% to 1.5% + digits (higher ranges)
    AC Voltage (V AC) 400 mV to 1000 V 1 mV to 1 V 0.8% to 2% + 5 digits (varies with range)
    DC Current (A DC) 400 µA to 10 A 10 µA to 10 mA 1% + 5 digits (typical)
    AC Current (A AC) 400 µA to 10 A 10 µA to 10 mA 1.5% + 5 digits (typical)
    Resistance (Ω) 100 mΩ to 40 MΩ 0.1 Ω to kΩ 0.8% to 2% + 5 to 10 digits
    Capacitance (F) 1 pF to 200 µF 1 pF to µF 2% + digits
    Frequency (Hz) 10 Hz to 500 kHz 0.01 Hz to Hz Varies, approx. ± 0.1% + digits
    Duty Cycle (%) 0.2% to 98% 0.1% ±0.1%
    Temperature (°C) 0 °C to +1300 °C (K-type thermocouple) 1 °C ± 1 °C
    Diode Test Up to 1 V 1 mV Approx. 1 mV
    Continuity Test Below 100 Ω (Acoustic buzzer) N/A N/A (buzzer signal for < 100 Ω)

  • Applications:

    The RISH MAX 10 Digital Multimeter is ideal for universal applications, including:

    • General Electrical Work: Basic troubleshooting of household and commercial wiring, outlets, and switches.

    • Electronics Service: Repair and diagnostic work on printed circuit boards (PCBs), measuring components (capacitors, resistors, diodes).

    • Radio/TV & Communications: Testing voltage, current, and frequency in signal and power circuits.

    • Automotive Diagnostics: Basic checks of vehicle battery, fuses, and electrical components.

    • Education & Training: Lab work and learning the fundamentals of electrical measurement.

    • HVAC (Temperature): Measuring temperature using a K-type thermocouple (probe required).

  • What's Included In The Box

    • 1 x RISHABH RISH MAX 10 Digital Multimeter

    • 1 x Set of Test Leads (Red/Black)

    • 1 x Protective Cover with Tilt Stand

    • 1 x Copy of Operating Instructions
