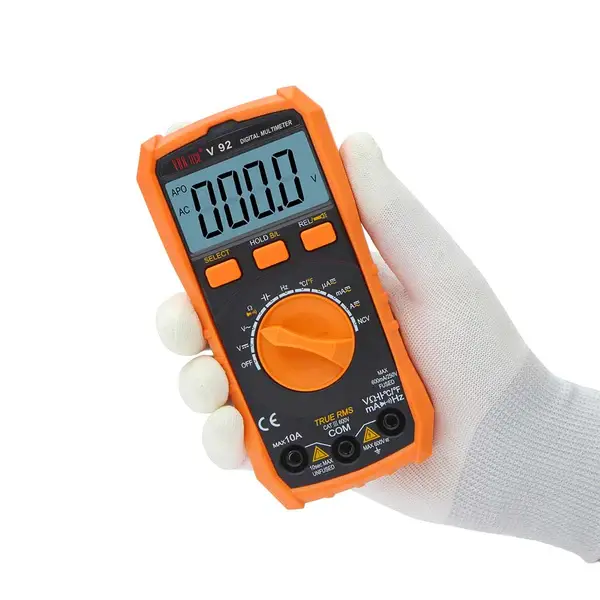

VAR TECH Digital Multimeter(V 92)

VAR TECH Digital Multimeter(V 92)

SKU: VAR TECH V 92
₹1,600.00Price
Sales Tax Included
Unlock precision and reliability with the VAR TECH V92. Designed for electricians, engineers, and DIY enthusiasts, the VAR TECH V92 is a robust, auto-ranging digital multimeter that combines professional-grade accuracy with user-friendly features. Whether you are troubleshooting complex industrial circuits or checking household electronics, the V92 delivers.
Quantity

  • Key Features:

    • True RMS Accuracy: Get precise measurements for AC/DC signals, even on non-linear loads.

    • 6000 Count Display: High-resolution, backlit LCD ensures easy reading in dim environments.

    • Smart Auto-Ranging: Automatically selects the correct range for faster, hands-free operation.

    • Comprehensive Safety: Rated CAT III 600V with overload protection to keep you safe during use.

    • Non-Contact Voltage (NCV): Quickly detect live wires without making contact, adding an extra layer of safety.

    • Multi-Function Utility: Measures Voltage, Current (up to 10A), Resistance, Capacitance, Frequency, and Temperature.

    • Built-in Tools: Includes a handy LED torch for dark work areas, Data Hold function, and a folding stand.

  • Technical Specifications:

    Electrical Specification:

    Function Range Resolution Accuracy
    DC Voltage 600 mV 0.1 mV ± (0.5% rdg + 5 digits)
      6 V 0.001 V ± (0.5% rdg + 3 digits)
      60 V 0.01 V ± (0.5% rdg + 3 digits)
      600 V 0.1 V ± (0.5% rdg + 3 digits)
    AC Voltage (True RMS) 6 V 0.001 V ± (0.8% rdg + 5 digits)
      60 V 0.01 V ± (0.8% rdg + 5 digits)
      600 V 0.1 V ± (1.2% rdg + 10 digits)
    DC Current 600 µA 0.1 µA ± (1.0% rdg + 10 digits)
      6000 µA 1 µA ± (1.0% rdg + 10 digits)
      60 mA 0.01 mA ± (1.2% rdg + 8 digits)
      600 mA 0.1 mA ± (1.2% rdg + 8 digits)
      6 A 0.001 A ± (2% rdg + 5 digits)
      10 A 0.01 A ± (2% rdg + 5 digits)
    AC Current (True RMS) 600 µA 0.1 µA ± (1.0% rdg + 10 digits)
      6000 µA 1 µA ± (1.0% rdg + 10 digits)
      60 mA 0.01 mA ± (1.5% rdg + 15 digits)
      600 mA 0.1 mA ± (1.5% rdg + 15 digits)
      6 A 0.001 A ± (3.0% rdg + 10 digits)
      10 A 0.01 A ± (3.0% rdg + 10 digits)
    Resistance 600 Ω 0.1 Ω ± (0.8% rdg + 5 digits)
      6 kΩ 0.001 kΩ ± (0.8% rdg + 4 digits)
      60 kΩ 0.01 kΩ ± (0.8% rdg + 4 digits)
      600 kΩ 0.1 kΩ ± (0.8% rdg + 4 digits)
      6 MΩ 0.001 MΩ ± (0.8% rdg + 4 digits)
      60 MΩ 0.01 MΩ ± (1.2% rdg + 10 digits)
    Capacitance 10 nF 0.01 nF ± (5% rdg + 40 digits)
      100 nF 0.1 nF ± (3.5% rdg + 20 digits)
      1 µF - 200 µF 0.001 µF - 0.1 µF ± (3.5% rdg + 20 digits)
      2 mF 0.001 mF ± (5% rdg + 40 digits)
    Frequency 10 Hz - 2 MHz 0.01Hz - 0.001MHz ± (1.0% rdg + 10 digits)
    Temperature -20°C ~ 1000°C 1°C < 400°C: ±(1.0% rdg + 5 digits)
    > 400°C: ±(1.5% +15 digits)



    General Specification:

    Specification Detail
    Display 6000 Counts (3 5/6 Digits) HD LCD with Backlight
    Measurement Type True RMS
    Safety Rating CAT III 600V
    Overload Protection 250V DC/AC rms (on logic/current ranges)
    Sampling Rate Approx. 3 times/second
    Power Supply 2 x 1.5V AAA Batteries
    Auto Power Off Yes (Conserves battery life)
    Dimensions 146 mm (L) x 72 mm (W) x 50 mm (H)
    Weight Approx. 235 g (including battery & holster)
    Operating Environment 0°C ~ 40°C
    Special Functions Non-Contact Voltage (NCV), Torch Light, Data Hold, Relative Measurement

  • Applications:

    • Household Electrical Repair: Safely check wall outlets, switches, and extension cords using Non-Contact Voltage (NCV) detection and AC voltage measurement.

    • Automotive Diagnostics: Test car batteries, alternators, and fuses with accurate DC voltage and continuity checks.

    • HVAC Maintenance: Measure temperature in heating and cooling vents or check motor start capacitors with the capacitance function.

    • Electronics Troubleshooting: Diagnose printed circuit boards (PCBs) by measuring resistance, capacitance, and frequency to identify faulty components.

    • Appliance Repair: Verify current draw (Amps) and power supply consistency in refrigerators, washing machines, and other home appliances.

    • DIY & Hobby Projects: Perfect for students and hobbyists building circuits, ensuring components like resistors and LEDs are functioning correctly.

  • What's Included In The Box

    • 1 x VAR TECH V92 Digital Multimeter

    • 1 x Pair of Test Leads

    • 1 x Temperature Probe (Thermocouple)

    • 1 x Protective Holster (Pre-installed)

    • 1 x User Manual
