VAR TECH V 92 S Smart Digital Multimeter | True RMS, Auto-Ranging, 6000 Counts
The VAR TECH V 92 S is a professional-grade, fully automatic smart digital multimeter designed for electricians, technicians, and hobbyists. Featuring True RMS technology for accurate measurements on non-linear loads, this device automatically detects the parameter being tested (Voltage, Resistance, or Continuity) in "Smart" mode, eliminating the need for manual dial switching. With a high-definition 6000-count display, and comprehensive safety features like NCV (Non-Contact Voltage) detection and input jack prompts, the V 92 S combines precision with user-friendly operation.
Key Features:
- Smart Auto-Detection: Automatically recognizes AC/DC voltage, resistance, and continuity modes for quicker and safer measurements.
- True RMS Precision: Delivers accurate AC voltage and current readings, even when signals have distorted waveforms.
- Dual Display with Analog Bar Graph: Features a large, backlit HD LCD that displays primary and secondary values simultaneously, complemented by a responsive analog bar indicator.

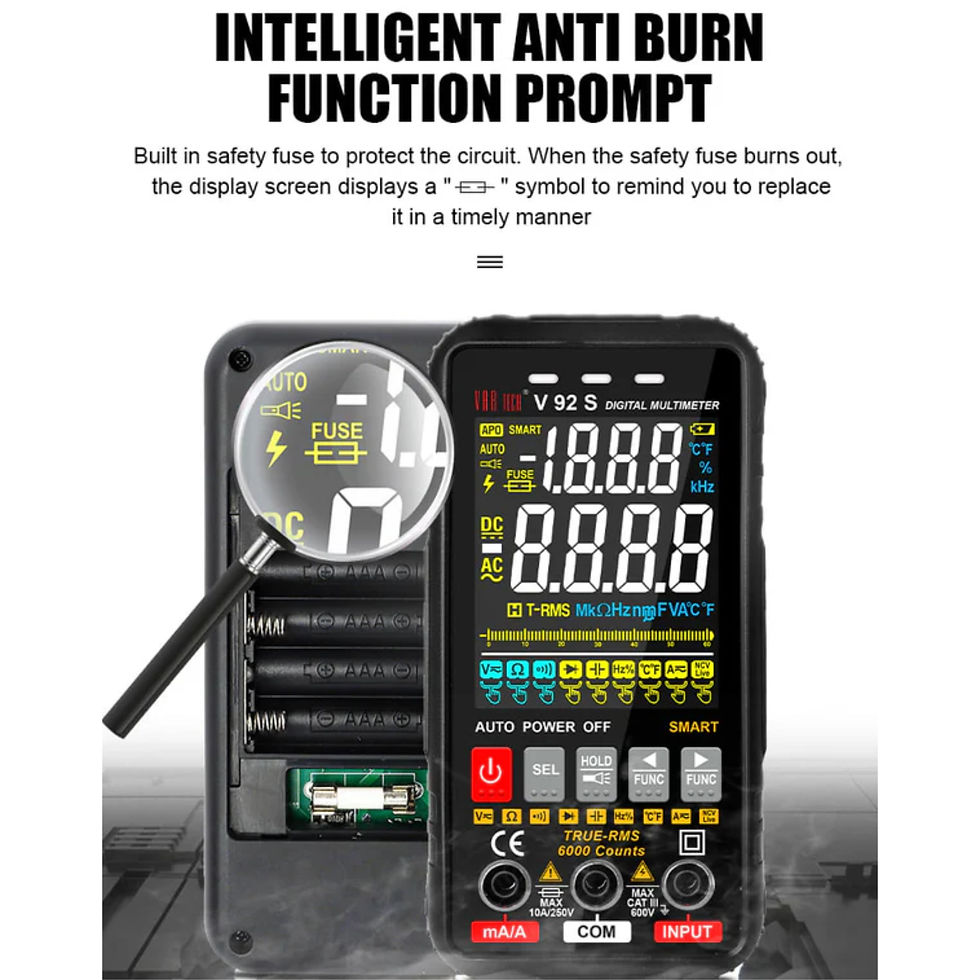

- Enhanced Safety Protection: Certified CAT III 600V with built-in overload protection, lead-insertion alerts through "Jack Prompt," and a fuse failure warning system.
- Non-Contact Voltage Detection (NCV): Identifies live wires and voltage presence without requiring direct contact, improving safety.
- Integrated Torch & Backlit Screen: Includes a built-in LED flashlight and illuminated display for visibility in low-light electrical environments.
- Data Hold & Auto Power-Off: Allows users to lock readings for documentation and automatically powers down to extend battery life.
Technical Specifications:
Electrical Specification:
Function
Range
Resolution
Accuracy
DC Voltage
600mV
6.000V
60.00V
600.0V
0.1mV
0.001V
0.01V
0.1V
±(0.5% + 3 digits)
AC Voltage (True RMS)
6.000V
60.00V
600.0V
0.001V
0.01V
0.1V
±(1.0% + 3 digits)
DC Current
600.0mA
6A
10.00A
0.1mA
0.001A
0.01A
±(1.2% + 3 digits)
AC Current (True RMS)
600.0mA
6A
10.00A
0.1mA
0.001A
0.01A
±(1.2% + 3 digits)
Resistance
600.0Ω
6.000kΩ
60.00kΩ
600.0kΩ
6.000MΩ
60.00MΩ
0.1Ω
0.001KΩ
0.01KΩ
0.1KΩ
0.001MΩ
0.01MΩ
±(1.0% + 5 digits)-
±(2.0% + 10 digits)
Capacitance
6.000nF
60nF
600nF
6µF
60µF
600µF
6mF
60mF
0.001nF
0.01nF
0.1nF
0.001µF
0.01µF
0.1µF
0.001mF
0.01mF
±(4.0%+5 digits)- ±(10.0%+10 digits)
Frequency
6.000Hz to 10.00MHz
0.001Hz to 0.01MHz
±(1.0% + 3 digits)
Temperature
-40°C to 1000°C / -40°F to 1832°F
1°C / 1°F
±2%
General Specification:
Specification
Detail
Brand
VAR TECH
Model
V 92 S
Display
6000 Counts HD Display With Backlight
Measurement Mode
Smart Fully Automatic mode
Measurement Type
True RMS
Visual Indicators
Analog bar graph
Voltage Range
600V AC/DC
Current Range
10A AC/DC
Safety Features
Jack Prompt, Burnt fuse Prompt, and NCV (Non-Contact Voltage)
Additional Tools
Built-in Torch and Data Hold function
Power Management
Auto Power Off and Low Battery indicator
Protection
Supplied with a protective holster and carrying case
What's Included In The Box:
-
1 x VAR TECH V 92 S Digital Multimeter
-
1 x Pair of Heavy-Duty Test Leads (Red & Black)
-
1 x Temperature Probe (K-Type Thermocouple)
-
1 x Protective Rubber Holster (Pre-installed)
-
1 x Carrying Pouch / Case
-
1 x User Manual
-
